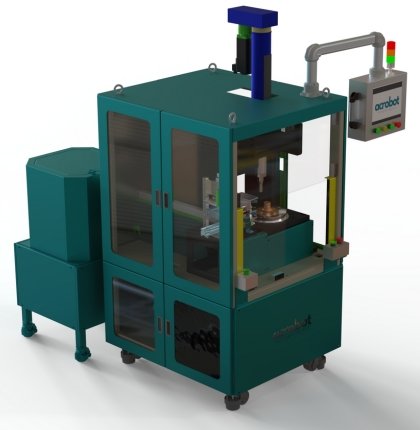

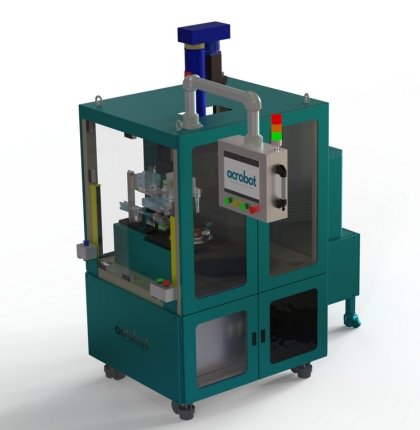

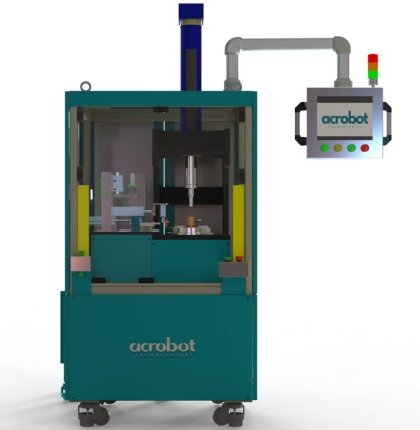

Servo Press Machine

• Press Capacity

  Available from 5 kN to 300 kN, customizable as per application requirements.

• Drive System

  High-precision servo motor with ball screw mechanism for accurate motion control.

• Stroke Length

  Programmable stroke length up to 300 mm for flexible pressing operations.

• Force Accuracy

  Force control accuracy of ±1% ensuring consistent and repeatable results.

• Position Accuracy

  High positioning accuracy up to ±0.01 mm for precision assembly tasks.

• Operating Modes

  Supports force control, position control, and speed control modes.

• Control System

  PLC-based control system with user-friendly HMI touch screen interface.

• Monitoring & Data Logging

  Real-time force–displacement curve monitoring with cycle data storage.

• Safety Features

  Includes emergency stop, safety interlocks, and optional light curtain.

• Power Supply

  Operates on 230V or 415V AC, 50 Hz industrial power supply.

• Delivers high precision and repeatability in pressing operations
• Adjustable force profiles for diverse forming requirements
• Reduces cycle time and improves production efficiency
• Energy-efficient operation with servo drive control
• Consistent quality with minimized part deformation
• Supports complex forming and multi-stage pressing tasks

Our Servo Press Machine combines cutting-edge servo drive technology with robust mechanical design to deliver precise, reliable, and efficient pressing performance. Ideal for industries requiring high-accuracy forming, stamping, and assembly pressing, this solution provides fine control over force and position, reduces energy consumption, and ensures consistent product quality. With flexible programmability and seamless integration into automated lines, it enhances throughput, lowers operating costs, and supports demanding manufacturing environments.
